Ecreso Redundancy Units

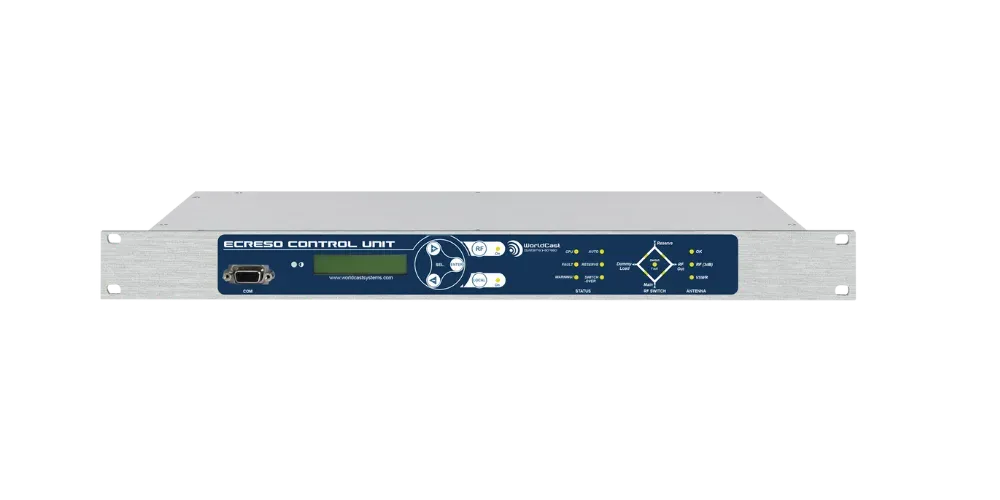

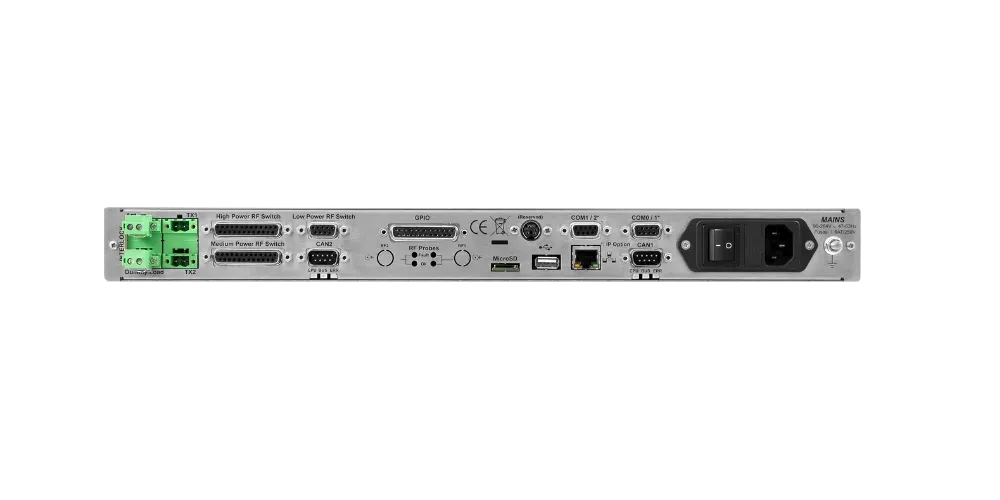

1+1 and N+1

The Ecreso changeover solution is the optimal solution for radios that cannot afford 24/7 immediate on-site maintenance. When a fault arises, a smart & steady algorithm automatically switches from the main transmitter to the reserve transmitter based on program priority and the level of severity. 

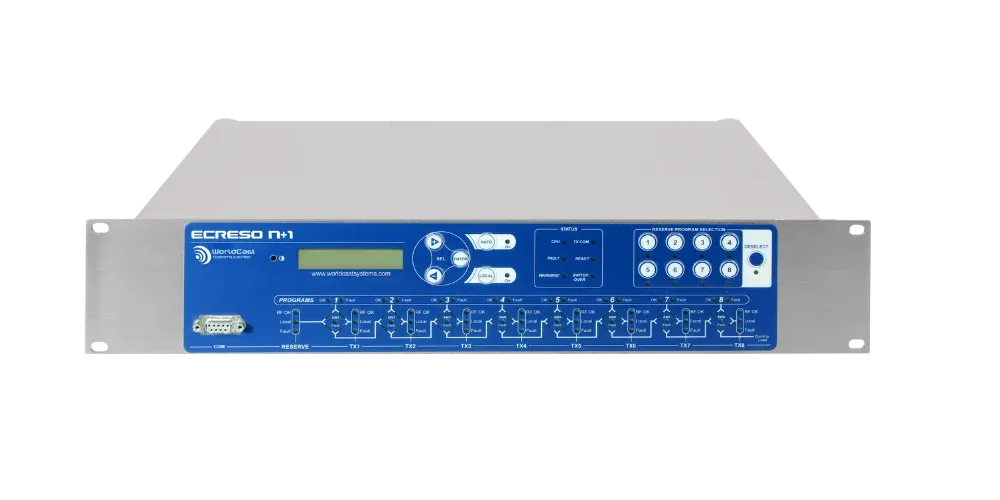

Highly flexible, Ecreso solutions meet the needs of small and large scale radio broadcasting with a scalable system capable of monitoring up to 8 FM transmitters simultaneously and to back them up with one reserve unit. 

Our products are designed to provide the highest reliability and to STAY ON-AIR! Robust components and security loops have been implemented to protect the complete system and ensure maximum uptime. Then, in the event of control unit fault, the transmitters stay on-air with their latest configuration.  

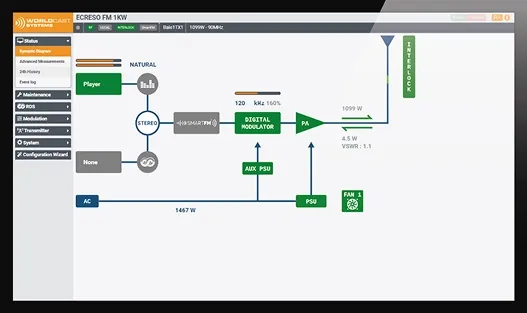

The Ecreso 1+1 and N+1 solutions natively provide a remote access to the unit to simplify maintenance operations.  From a standard web browser, the operators have access to the full configuration including: Program priorities, switching time, customizable switching conditions.

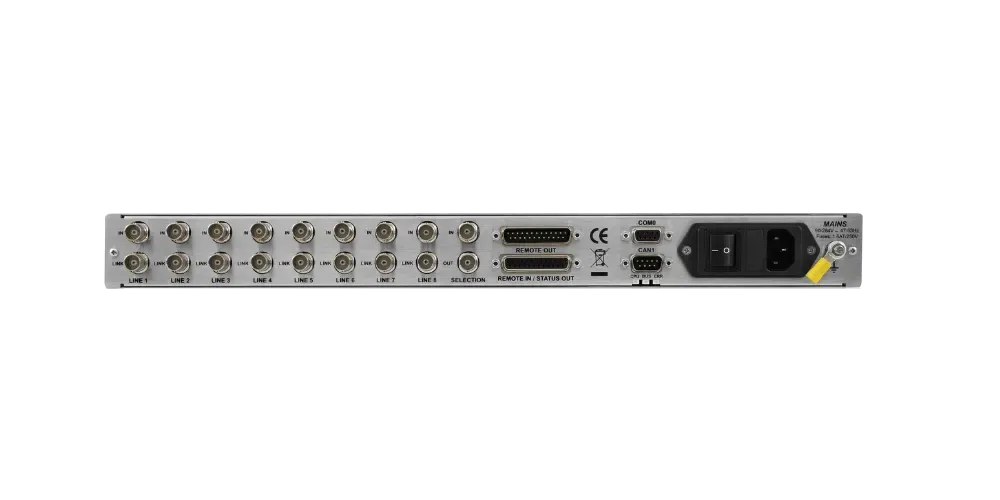

To facilitate the installation and automatic switching from faulty program to reserve transmitter, the Ecreso N+1 comes with additional 1U AUDIO/MPX switch that feeds automatically the reserve transmitter with the relevant program. Up to 5 AUDIO/MPX switch can be installed in one N+1 system.

WorldCast Systems delivers fully pre-racked, pre-cabled 1+1 and N+1 systems, designed and tested for fast deployment. From engineering to final setup, our teams handle it all - ensuring a seamless, plug-and-play installation that gets you on air faster and with total confidence.
