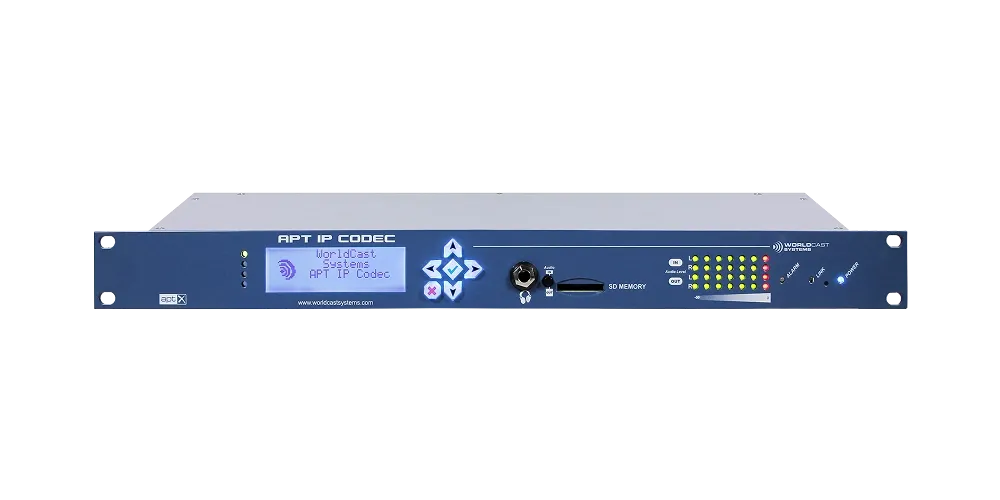

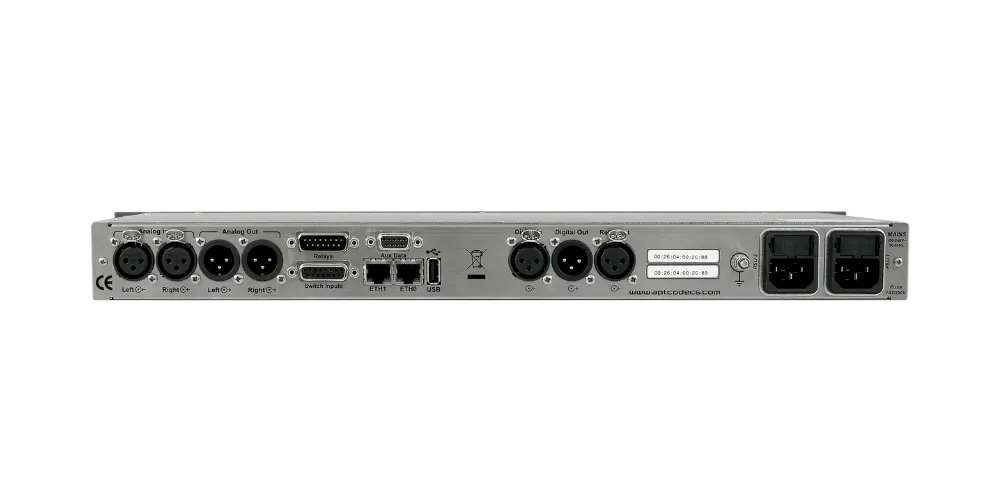

APT IP Codec
Audio over IP Transport

Overview

Geared Up for Next-Gen Broadcasting

The APT IP Codec is a cutting-edge, professional IP stereo codec geared up with unique, market-leading technology to provide next generation broadcast performance. Innovative and feature-packed, the APT IP Codec elevates the quality of your broadcasts with reliable, cost-effective, and accurate temporal IP audio transmission.  The APT IP Codec is perfectly equipped for individual FM feeds as well as multi- and single-frequency broadcasting. It is suitable for mission critical applications and provides extensive control and monitoring functions to manage your audio, data and network conditions, as well as other equipment located at the transmitter site.

With the APT IP Codec, you know you will enjoy the rock-solid performance upon which APT has earned the trust of countless broadcasters worldwide.  

APT IP Codec

ModelsComposite/MPX
& Audio
Power Consumption Main Power SupplyHeight
APT IP Codec
  • Asymetric Audio
  • Analog I/O
  • Digital Audio I/O
  • Digital MPX
<20 VA100-240VAC / 50-60 Hz1U

Benefits

IP Transport
Optimization

APT IP Codecs migrate the advantages of a synchronous connection to the IP world. With SureStream, packet losses are compensated, and latency fluctuations are eliminated by SynchroStream or the NTP-based Time Alignment. The enhanced NAT traversal mode overcomes barriers and IP packets reliably reach their specified destinations.

IP_Transport_Optimization blue icon

Product Application

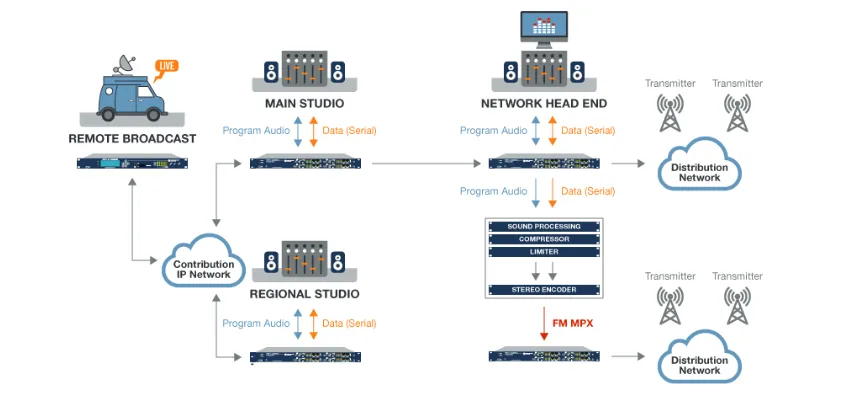

AoIP Distribution

APT_Multichannel_AoIP_Distribution_application 2

APT codecs offer the reliability, quality, and redundancy required by broadcasters for applications such as Studio-Transmitter links, studio networking and remote broadcasting/OBs. With both stereo and multi-channel audio platforms available, APT units can be deployed as a simple STL, a large-scale broadcast audio network or an audio distribution installation for commentary or in-store music.

Innovations

Industry-Renowned APT Technology

SureStream

Secured, Low-Latency IP Transport

SureStream

Available on all APT codecs, SureStream ensures perfect audio or MPX delivery over IP by sending multiple stream copies across diverse network paths. Its intelligent redundancy engine reconstructs a flawless, low-latency stream at the receiver end - eliminating dropouts and ensuring true broadcast-grade reliability, even over imperfect networks.

APTmpX_Showcase with RDS

Highest Quality MPX Compression

APTmpX

APTmpX is the industry’s leading composite/MPX compression algorithm, delivering exceptional audio transparency over low-bitrate IP connections. With bandwidth options as low as 300, 400, and 600, it removes the usual trade-off between audio quality and transmission efficiency. APTmpX eliminates the two main barriers to FM MPX migration - high bandwidth requirements and audio degradation - making it the go-to solution for cost-effective, high-fidelity MPX-over-IP transport.

SynchroStream

Precise Time Synchronization

SynchroStream

SynchroStream is a GPS-based technology that delivers ultra-stable, synchronized audio transport over IP by removing latency variability within extremely narrow limits. A single encoder latency setting keeps all decoders aligned with millisecond accuracy, with automatic sub-microsecond fine-tuning at each site. Integrated into WorldCast's SFN FM solution, SynchroStream ensures highly accurate time synchronization across overlap zones. Engineers can precisely define the audio alignment point with better than 50-meter accuracy, using delay steps as fine as 125 ns.

Monitoring & Control

Effortless Supervision. Advanced Control

Virtual ScriptEasy
Smart Add-On

Advanced Facility Control

Virtual ScriptEasy

ScriptEasy is smart facility control software that automates site operations and resolves critical errors in real time. With its intuitive visual interface and customizable dashboards, it brings intelligent monitoring and control across your network. Available as SaaS, on-premise, or embedded.


Kybio_Screen_Services_RF
Smart Add-On

Monitor Your Product from the Cloud

Kybio NMS

Kybio NMS is included with your WorldCast product - giving you 1 year of powerful, cloud-based monitoring at no extra cost. Centralize data across sites, receive real-time alerts, and visualize performance with smart dashboards. Setup is fast, with autoconfiguration and expert support included.
