Ecreso FM
5-10kW

Overview

As Solid as a 1+1 FM Transmitter

Ecreso FM 5-10kW is a fully digital high power FM transmitter for analog FM. Engineered to meet the needs of the most demanding network operators and stations, it combines reliable performance, high efficiency of up to 76%, and state-of-the-art innovations.

Truly revolutionary, the Ecreso FM 5-10kW has a built-in 1+1 redundancy which ensures it stays on-air with minimal or no power loss.

With the Ecreso FM 5-10kW, broadcasters benefit reduced maintenance thanks to hot swappable power supplies, power amplifiers and fans, as well as a multitude of onboard features such as SmartFM, a patented Artificial Intelligence for FM bringing up to 40% energy cost savings. This advanced FM broadcasting solution is the result of decades of experience and a mission to bring to market the best high power FM transmitters in terms of total cost of ownership and audio quality.

ECRESO FM 5-10kW - product-img-1.webpEcreso_10kW_1+1Comparison_gallery

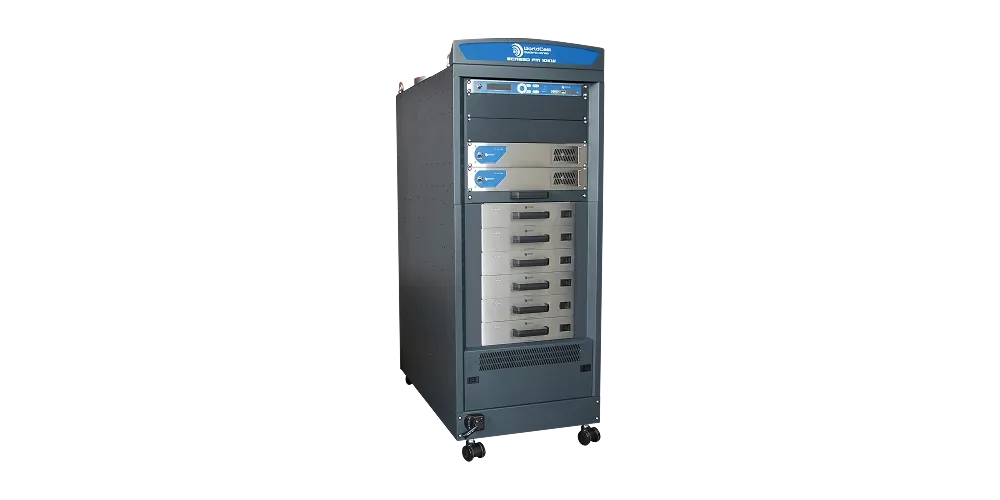

ECRESO FM 5-10kW - product-img-1.webp

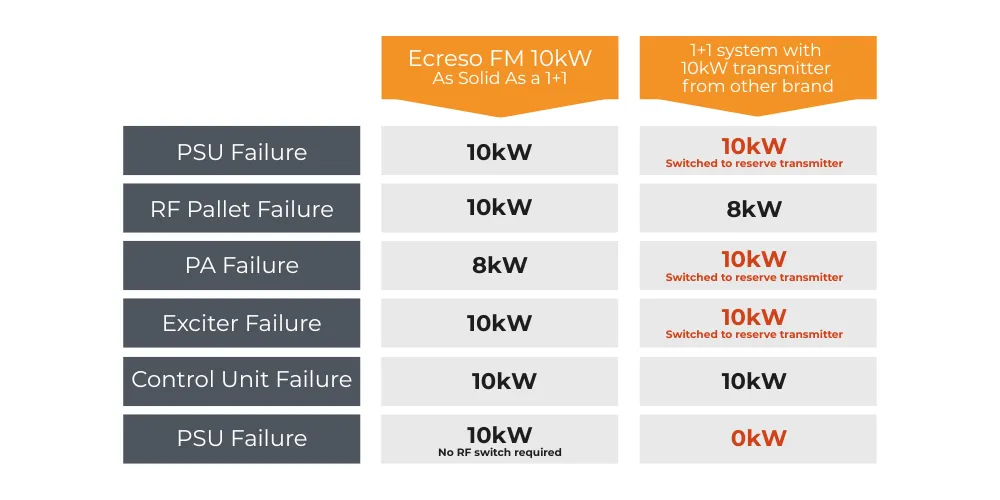

Ecreso_10kW_1+1Comparison_gallery

Product Version: 2.4.0

Ecreso FM 5-10kW:

Download Brochure

Specifications

ModelsPower OutputEfficiencyExciter;
Hot-Swappable Amplifier		Hot-Swappable
PSU & Fans
Ecreso FM 5kW
Standard version
0.5kW-5.5kWUp to 76%1 Exciter; 3x2.3kW PAs 3 PSUs; 2 Fans
Ecreso FM 5kW
As Solid As 1+1
0.5kW-5.5kWUp to 76%2 Exciters; 3x2.3kW PAsUp to 4 PSUs; 4 fans (crossfed)
Ecreso FM 10kW
Standard version
1kW-11kW Up to 76%1 Exciter; 6x2.3kW PAs6 PSUs; 2 fans
Ecreso FM 10kW
As Solid As 1+1
1kW-11kW Up to 76%2 Exciters; 6x2.3 kW PAsUp to 8 PSUs; 4 fans (crossfed)

Benefits

Superior Sound
Quality

Ecreso FM 5-10kW is engineered to deliver superior sound quality your audiences will love. With the direct-to-channel digital modulator and built-in sound processor, it will ensure perfect audio fidelity.  It delivers the audio excellence you expect from decades of FM design experience.

Superior Sound Quality - benefit image

Innovations

The Key to Better Broadcasting

As Solid As A 1plus 1 icon

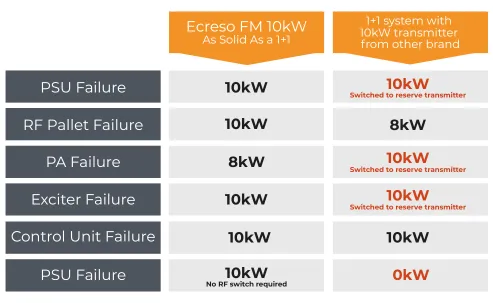

Operational When Others Fail

As Solid As A 1+1

The “As Solid As A 1+1” concept leverages exceptional built-in redundancy of the Ecreso FM 5/10kW to deliver ON-AIR performances equivalent to a 1+1 system, at a significant lower cost.
This has been achieved by removing the single points of failures (IPA for example), reducing the number of cables, oversizing modules, and offering dual modules for critical parts (exciter, fans, etc.).
The result? The system remains on-air when standard 1+1 solution switches to reserve, or shutdown the RF.

Download Tech Note on 10kW

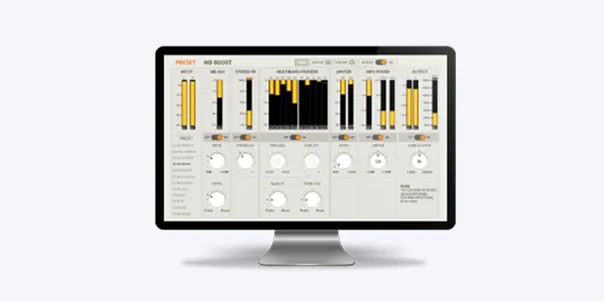

5-Band Sound Processor innovations

Craft Your Own Sound Signature

5-Band Sound Processor

The 5-band sound processor is a powerful tool built directly into the digital modulator - delivering outstanding reliability and signal clarity. Choose a wide-band version to complement your studio processing, or a multi-band version for full on-site control. A full library of presets is included to suit various formats and sound profiles, letting you craft your station’s unique audio signature with ease.

Learn More
SmartFM – sustainability meets cost-savings innovation

Huge Energy Bill Savings & Lower Emissions

SmartFM – AI for Radio

SmartFM is an AI-powered algorithm that cuts energy costs by up to 40% - with no compromise on audio quality or coverage. It powers the world’s most efficient and eco-friendly FM transmitter.

Learn More

Other Key Features

Get in Touch

Direct-to-Channel
Digital Modulator

Benefit from the highest purity and quality of your FM signal with our digital FM modulator.

Digital MPX
over AES

Directly feed the transmitter from the audio processor with a digital MPX signal sampled at 192kHz and enjoy pristine audio quality and seamless integration with modern digital studios. The support of MPX over AES ensures optimal signal transport and future-proof performance, making the Ecreso the ultimate solution for next-generation FM broadcasting.

Intelligent Input
Switching

Reduce your OFF-AIR time with the built-in silence detectors to automatic detect input loss and switch to backup signals. When no audio sources are available, activate the ultimate backup with the internal Player.

External Drive
Management

Although the Ecreso FM 5/10kW comes with a built-in FM exciter as standard, it can also be used solely as a power amplifier and driven by an external exciter, whether Ecreso or another brand.

Advanced Measurement
Interface

Visualize your FM signal without additional measurement equipment thanks to the embedded spectrum tools.

Graphical
History Log

All the maintenance data are recorded and displayed for the last 7 days with graphical representations.

Automation
Scheduler

Schedule configuration changes via complete presets. The transmitter can also, based on fault detection, apply preloaded configurations.

Alarm
Notifications

Receive a notification when your transmitter detects an error. It can automatically send an email to the relevant person to solve the issue.

SNMP
Management

Supports SNMP protocol with up to 4 SNMP managers enabling easy transmitter management. It includes a proprietary Mib for the control & monitoring of all transmitter parameters

GPIO
Management

Integrate your FM transmitter into your site monitoring and control system with the embedded GPIO.

Direct-to-Channel
Digital Modulator

Benefit from the highest purity and quality of your FM signal with our digital FM modulator.

Digital MPX
over AES

Directly feed the transmitter from the audio processor with a digital MPX signal sampled at 192kHz and enjoy pristine audio quality and seamless integration with modern digital studios. The support of MPX over AES ensures optimal signal transport and future-proof performance, making the Ecreso the ultimate solution for next-generation FM broadcasting.

Intelligent Input
Switching

Reduce your OFF-AIR time with the built-in silence detectors to automatic detect input loss and switch to backup signals. When no audio sources are available, activate the ultimate backup with the internal Player.

External Drive
Management

Although the Ecreso FM 5/10kW comes with a built-in FM exciter as standard, it can also be used solely as a power amplifier and driven by an external exciter, whether Ecreso or another brand.

Advanced Measurement
Interface

Visualize your FM signal without additional measurement equipment thanks to the embedded spectrum tools.

Graphical
History Log

All the maintenance data are recorded and displayed for the last 7 days with graphical representations.

Automation
Scheduler

Schedule configuration changes via complete presets. The transmitter can also, based on fault detection, apply preloaded configurations.

Alarm
Notifications

Receive a notification when your transmitter detects an error. It can automatically send an email to the relevant person to solve the issue.

SNMP
Management

Supports SNMP protocol with up to 4 SNMP managers enabling easy transmitter management. It includes a proprietary Mib for the control & monitoring of all transmitter parameters

GPIO
Management

Integrate your FM transmitter into your site monitoring and control system with the embedded GPIO.

1/5

Monitoring Solutions

Effortless Monitoring. Advanced Control.

Graphical User Interface

Powerful Control and Precision

Graphical User Interface

The Ecreso FM 5-10kW features a powerful and intuitive Graphical User Interface (GUI) that puts advanced control of your broadcast operations at your fingertips. Remotely configure and troubleshoot the transmitter, and access integrated software tools such as SmartFM and the 5-band sound processor. The GUI also includes full SNMP management with four independent manager profiles, complete parameter monitoring, and real-time alarm notifications via SNMP traps and email.

Kybio_Screen_Services_RF
Smart Add-On

Monitor Your FM Transmitter from the Cloud

Kybio - NMS

Kybio NMS is included with your Ecreso transmitter - giving you 1 year of powerful, cloud-based monitoring at no extra cost. Centralize data across sites, receive real-time alerts, and visualize performance with smart dashboards. Setup is fast, with autoconfiguration and expert support included.
